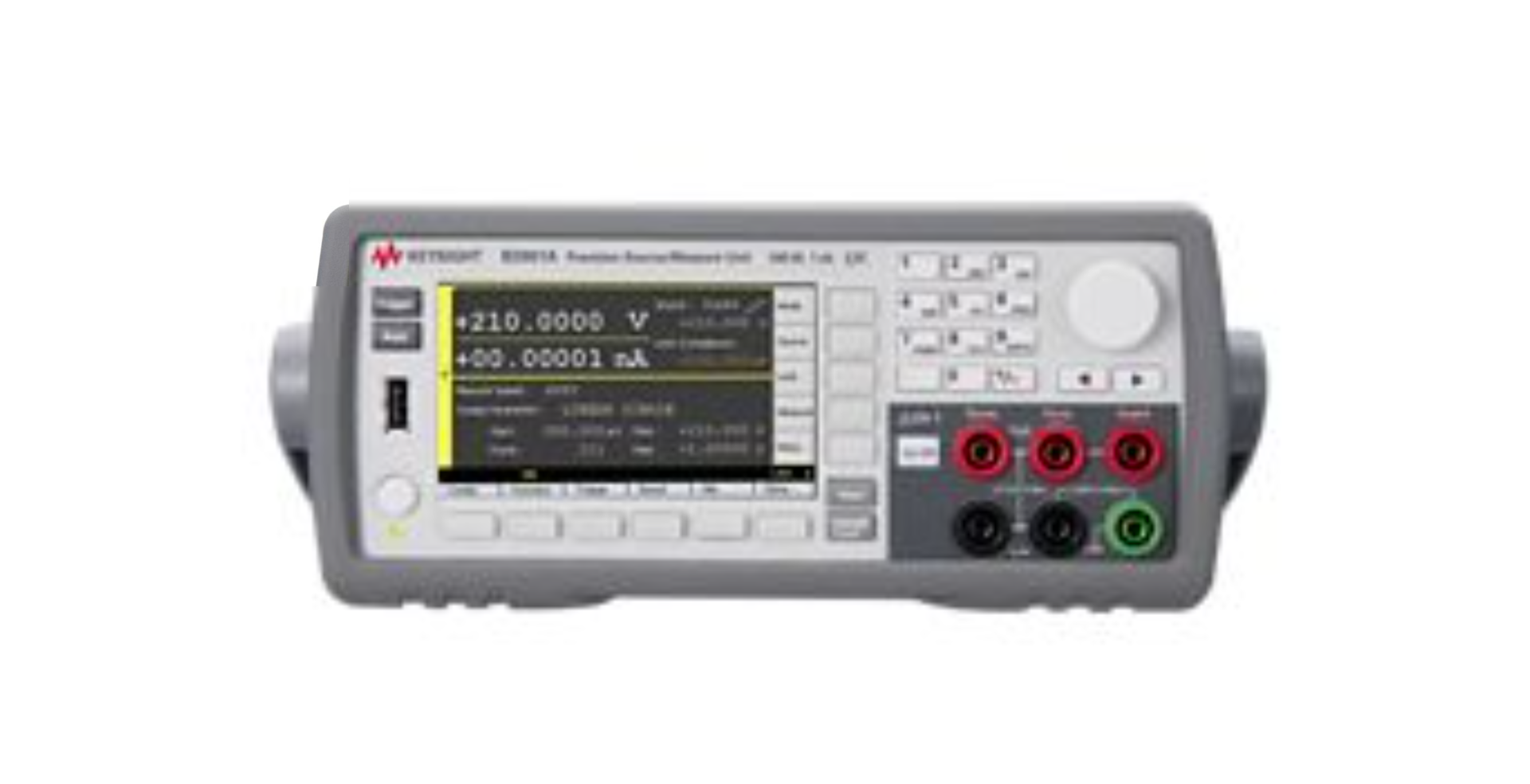

Measurement Capabilities

Supports two-channel configuration

Minimum source resolution: 1 pA /1 μV, Minimum measurement resolution: 100 fA/100 nV

Maximum output: 210 V, 3 A DC/10.5 A pulse

Arbitrary waveform generation and digitizing capabilities from 20 μs interval

General Features

Integrated 4-quadrant source and measurement capabilities

The 4.3’’ color display supports both graphical and numerical view modes

Free application software to facilitate PC-based instrument control

High throughput and SCPI command supporting conventional SMU command set
