System SourceMeter

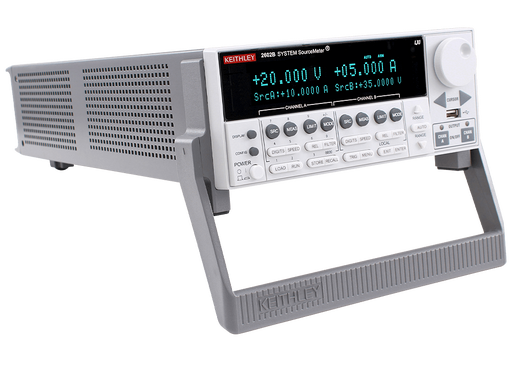

Product Overview The Keithley 2602B is a dual-channel System SourceMeter instrument from the 2600B series. It integrates a precision power supply, current source, 6½-digit DMM, pulse generator and electronic load into one compact unit. Widely adopted for semiconductor characterization, material testing, optoelectronic device evaluation and automated production testing. Each channel delivers 40W DC power, supporting ±40V voltage, 3A DC current and 10A pulse current. Key Features Dual fully isolated SMU channels (Channel A & Channel B), total 80W DC output 4-quadrant sourcing and measurement with 6½-digit measurement resolution Range: ±40 V, ±3 A DC / 10 A pulse; sensitivity down to 100 fA current / 100 nV voltage Built-in TSP (Test Script Processor) for on-board test automation to improve test throughput TSP-Link expansion interface for synchronizing multiple instruments to build multi-channel test systems Multiple standard interfaces: GPIB, Ethernet (LXI), USB 2.0, RS-232 and digital I/O Embedded web-based I-V analysis software; no extra PC software installation required Software compatible with classic Keithley 2400 SourceMeter for easy program migration
